#include <opencv2/highgui.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/core.hpp>
#include <iostream>
using namespace std;
using namespace cv;
#define PI 3.1415926
int main() {
Mat input = imread("road.jpg", IMREAD_GRAYSCALE);
Mat contours;
vector<Vec4i> lines;
// applying canny algorithm
Canny(input, contours, 125, 350);
/************* Probabilistic hough transform *************/
HoughLinesP(contours, // InputArray
lines, // OutputArray
1, // rho
PI / 180, // theta (step size)
60, // threshold (minimum number of votes)
100, // minLength
20); // maxGap
Mat houghLinesP;
input.copyTo(houghLinesP);
// Draw the lines
Scalar color = Scalar(255, 255, 255);
vector<Vec4i>::const_iterator it = lines.begin();
while (it != lines.end()) {
Point pt1((*it)[0], (*it)[1]);
Point pt2((*it)[2], (*it)[3]);
line(houghLinesP, pt1, pt2, color);
++it;
}
imwrite("houghLinesP.bmp", houghLinesP);

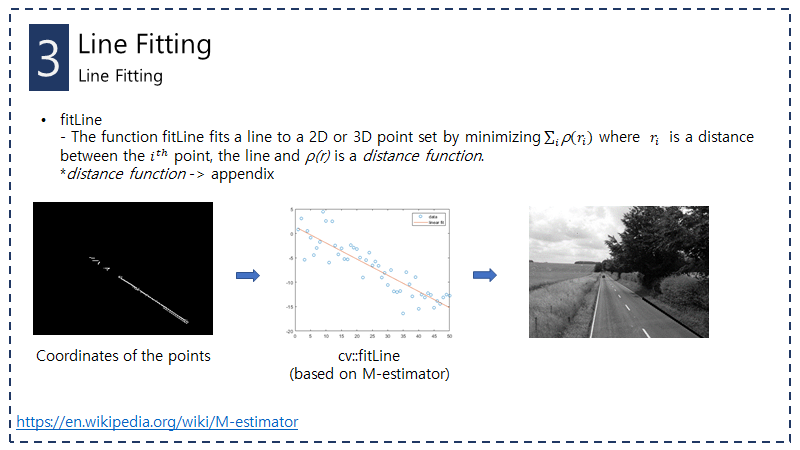

/************* Fitting a line *************/
// black background
Mat oneline(contours.size(), CV_8U, Scalar(0));
// Select first line and draw white line
int n = 0;
line(oneline,
Point(lines[n][0], lines[n][1]),
Point(lines[n][2], lines[n][3]),
Scalar(255),
3); // line width
imwrite("[BeforeBitwise]online.bmp", oneline);
// contours AND white line
bitwise_and(contours, oneline, oneline); // src1, src2, dst
// insert into a vector<Point>
vector<Point> points;
// Iterate over the pixels to obtain all point positions
for (int y = 0; y < oneline.rows; y++) {
// row y
uchar* rowPtr = oneline.ptr<uchar>(y);
for (int x = 0; x < oneline.cols; x++) {
// column x
if (rowPtr[x]) { // if on a contour
points.push_back(Point(x, y));
}
}
}
Vec4f line;

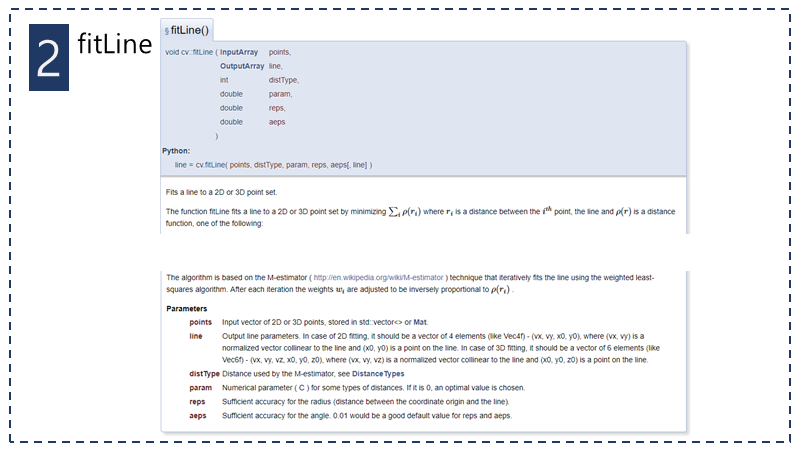

fitLine(points, line,

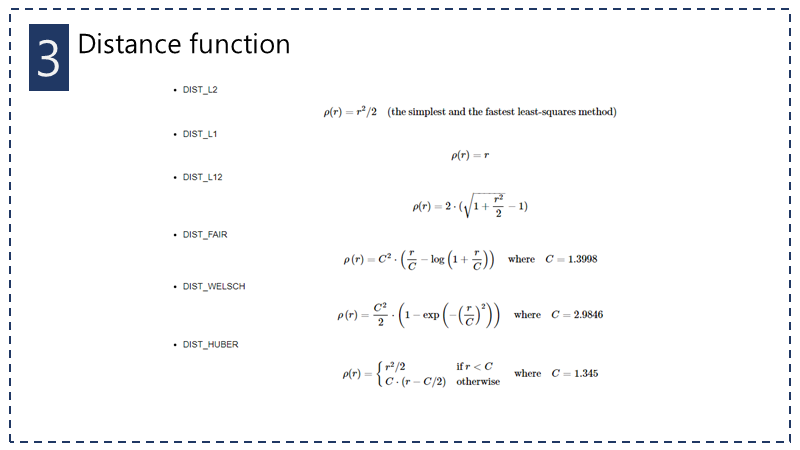

DIST_L2, // distance type
0, // not used with L2 distance
0.01, 0.01); // accuracy
int x0 = line[2]; // a point on the line
int y0 = line[3];
int x1 = x0 + 150 * line[0];
int y1 = y0 + 150 * line[1];
// draw the line
Mat result;
input.copyTo(result);
cv::line(result, Point(x0, y0), Point(x1, y1),
0, 2); // color and thickness
/************* Image writer *************/
imwrite("input.bmp", input);
imwrite("contours.bmp", contours);
imwrite("[AfterBitwise]online.bmp", oneline);
imwrite("Fitted line.bmp", result);
}
